RPM Gym at AD HUB — Full ELV ( CCTV, WIFI, SPEAKERS, GATES ) , Abu Dhabi

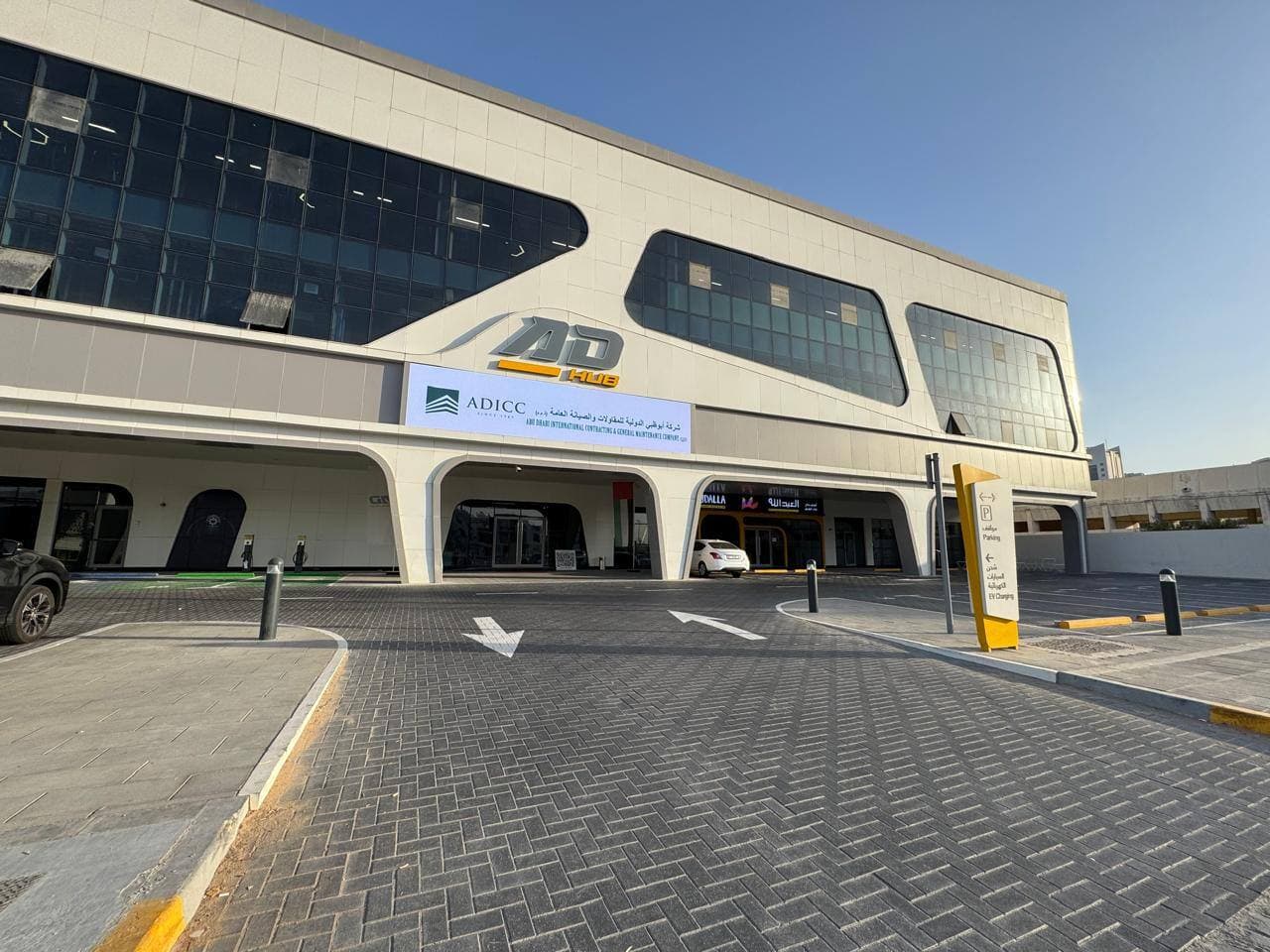

A ground-up ELV fit-out for a premium two-floor fitness club inside the ADICC Klub complex in Abu Dhabi. Skyline delivered structured cabling, CCTV, face-recognition turnstile access, ceiling-wide Wi-Fi, public-address audio, and a full network rack — installed alongside the interior fit-out so every ceiling, locker, and turnstile was live on opening day.

The Challenge

RPM Gym needed every low-voltage system in a premium two-floor fitness club ready on the day interior handover happened — not a week later, not after a punch list. That meant cabling had to be in the ceilings before they closed, devices had to be tested before commissioning, and face-recognition turnstiles had to be enrolled with the founding-member database before the first session.

The mechanical and gypsum trades were on aggressive parallel schedules, so any rework on our side would have collapsed the critical path. The brief was simple: be invisible during build, indispensable on opening day.

Our Solution

Skyline coordinated directly with the main contractor and the interior designer through a four-phase delivery:

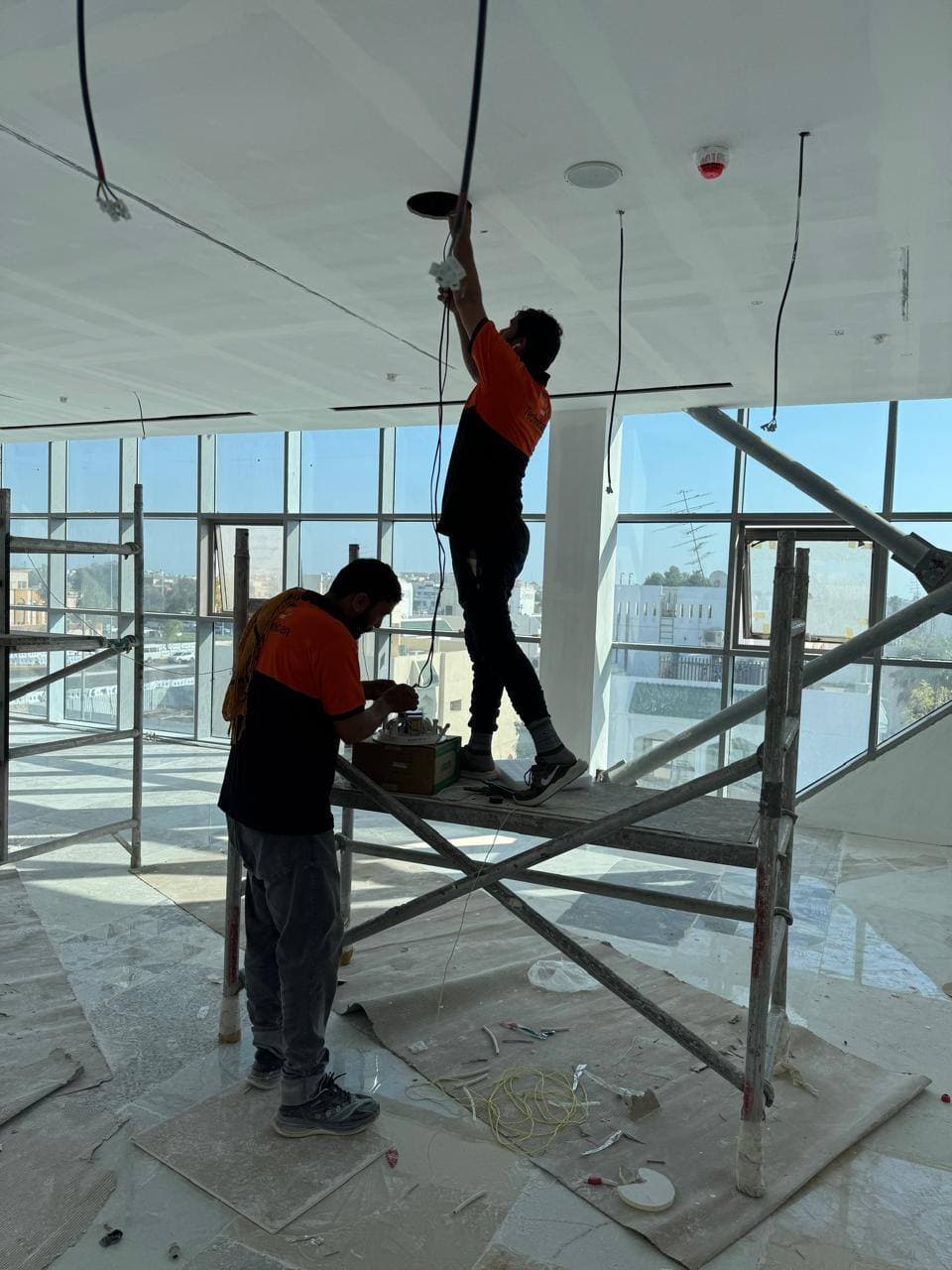

Structured cabling first-fix — 48 Cat 6 data drops routed through cable tray during MEP works, before ceilings closed.

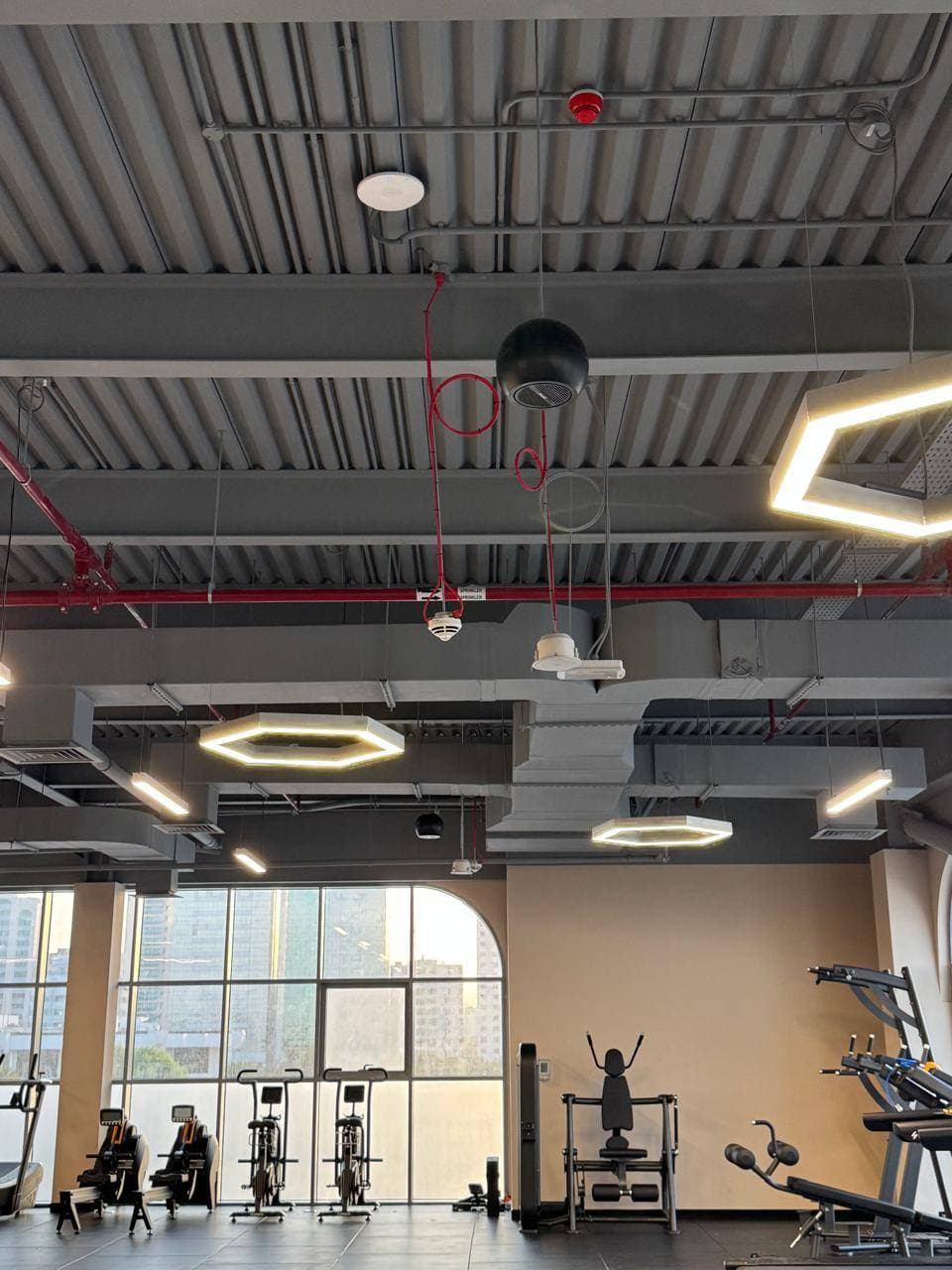

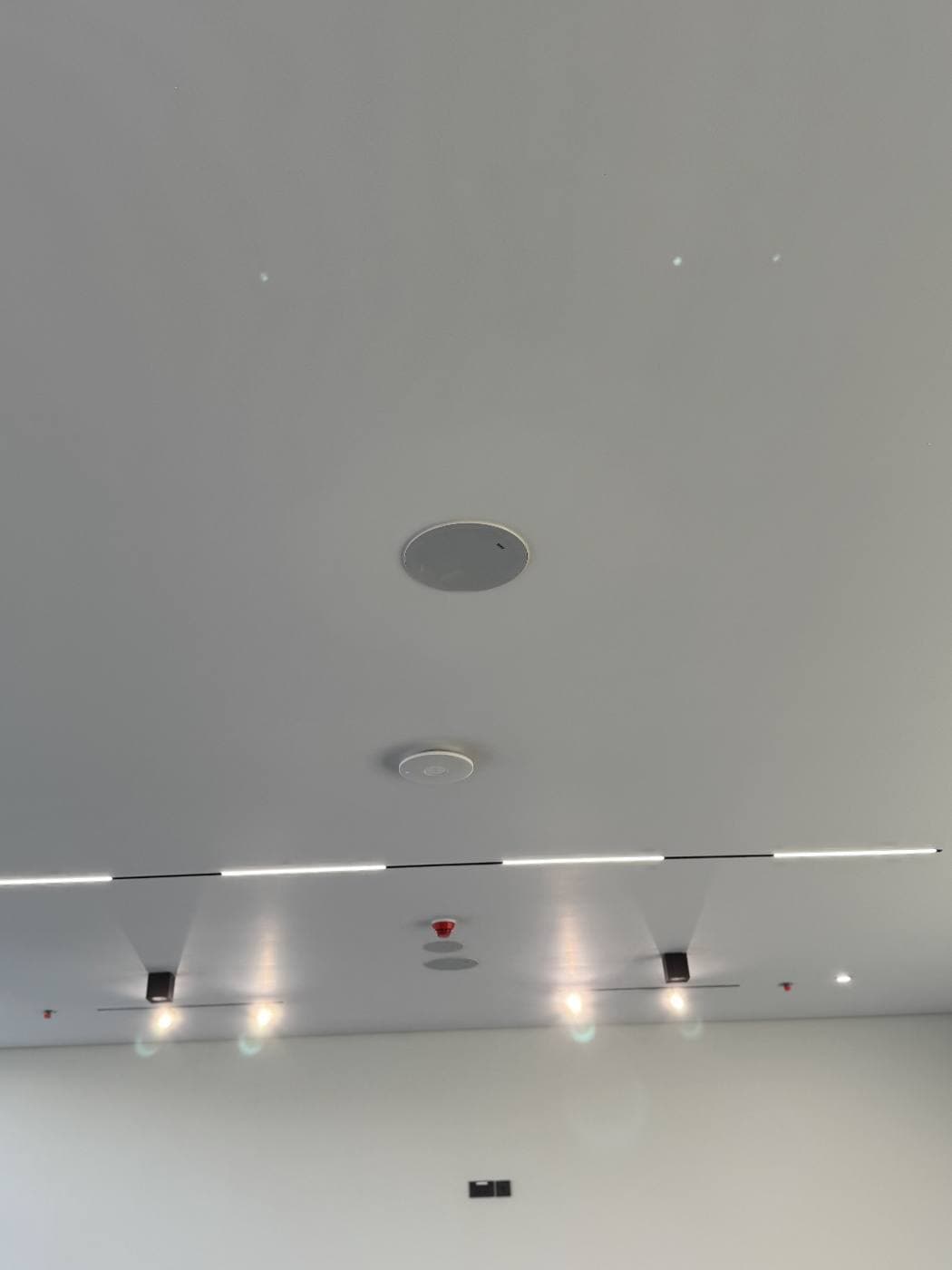

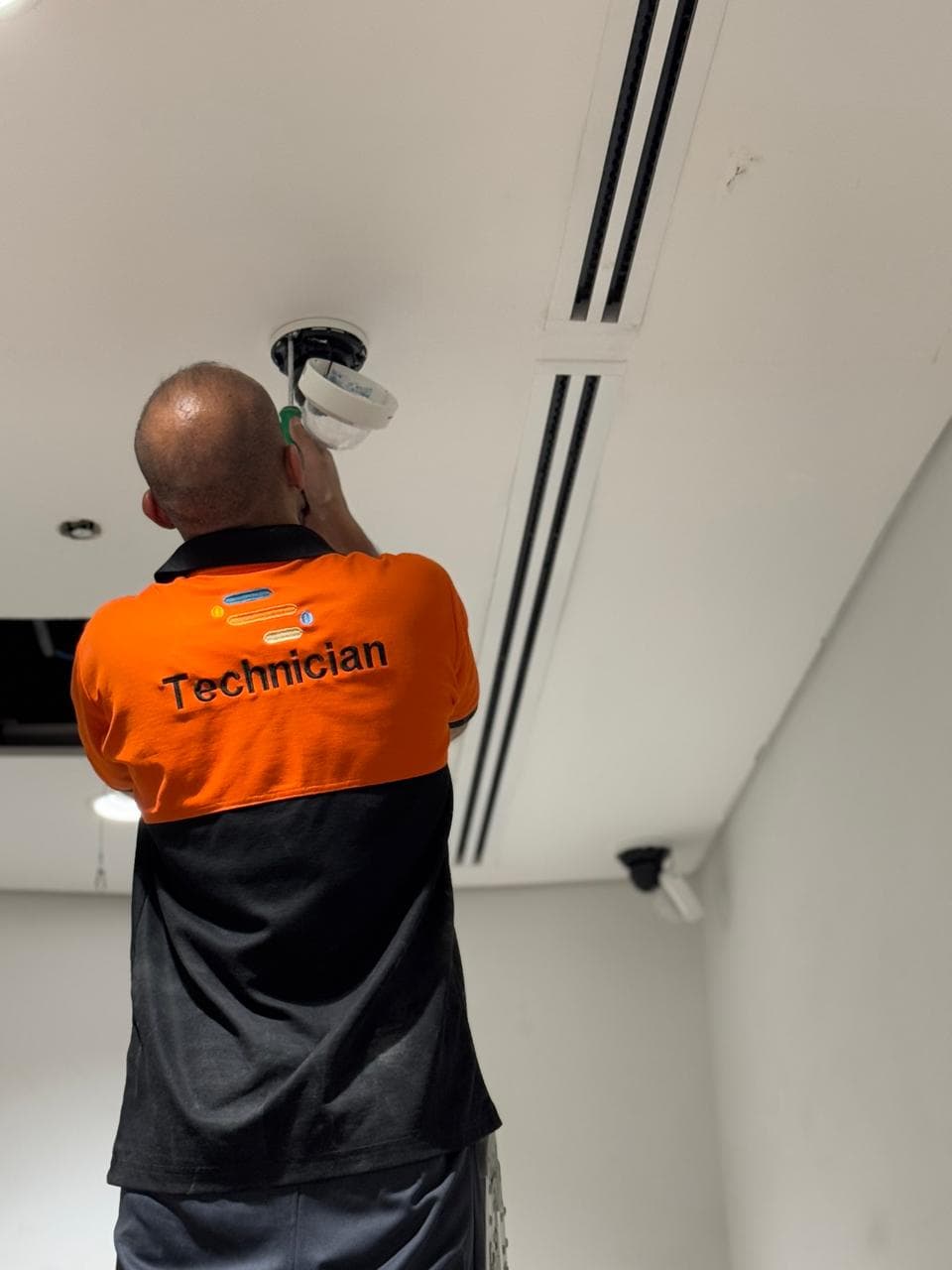

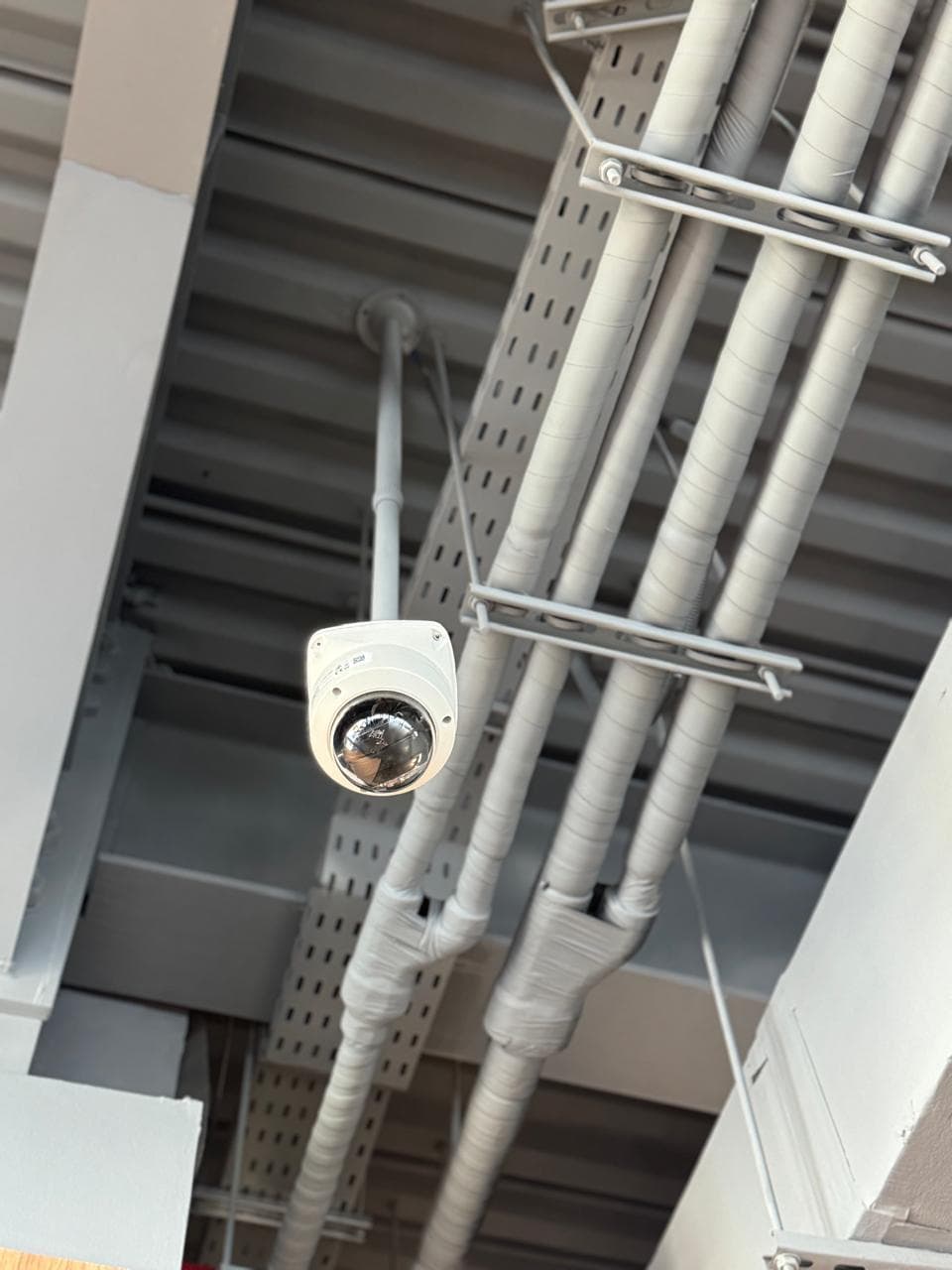

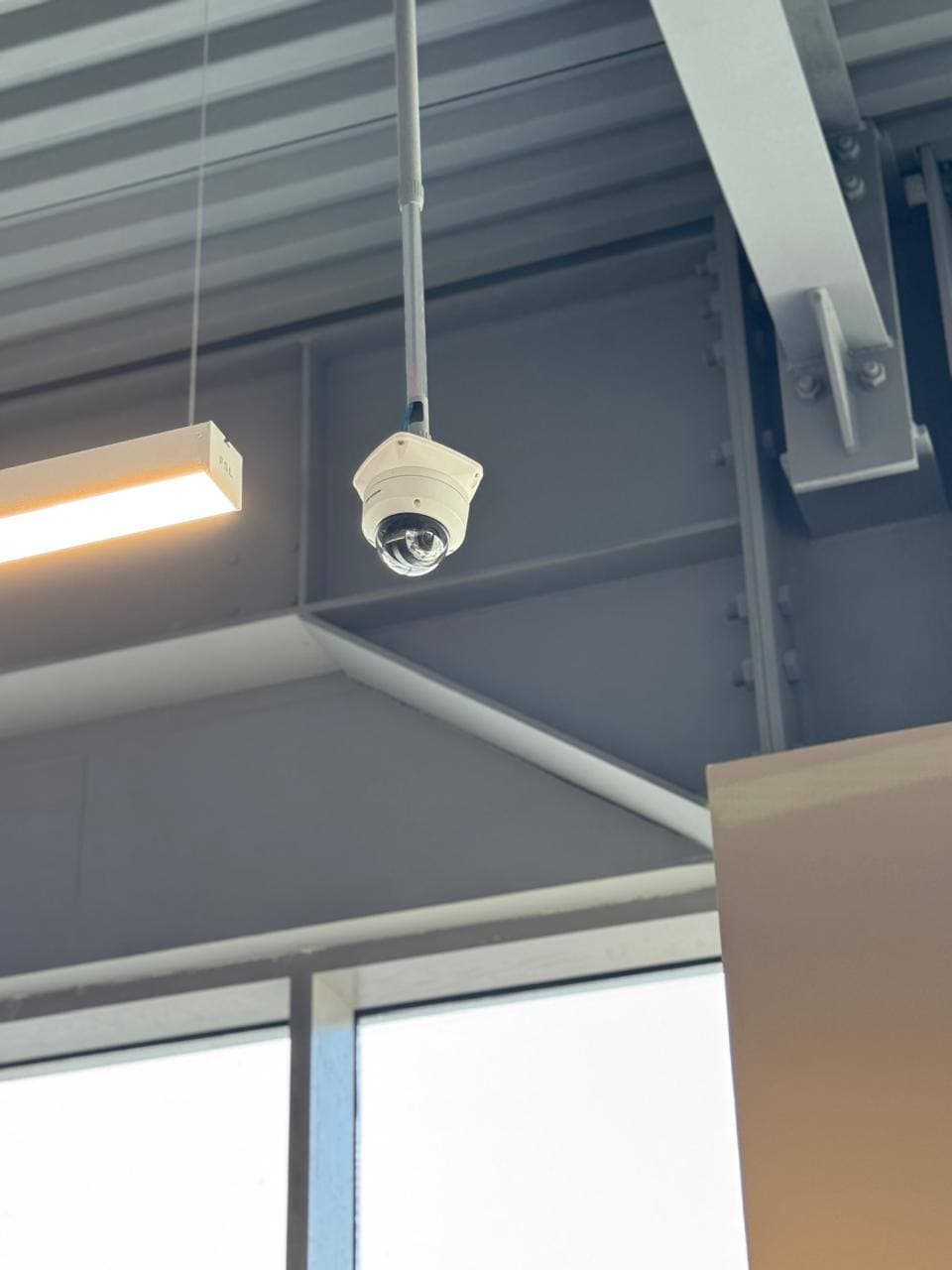

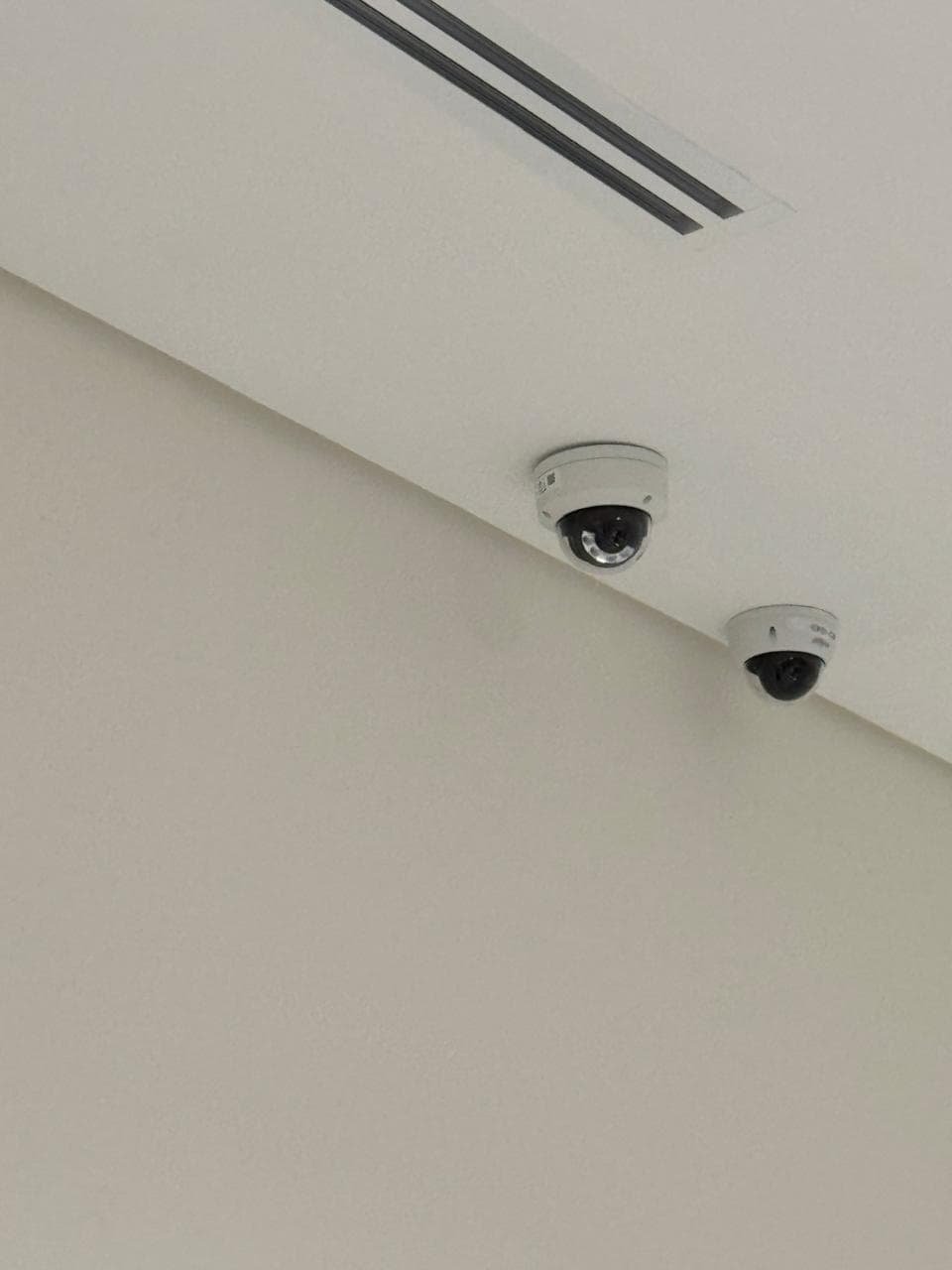

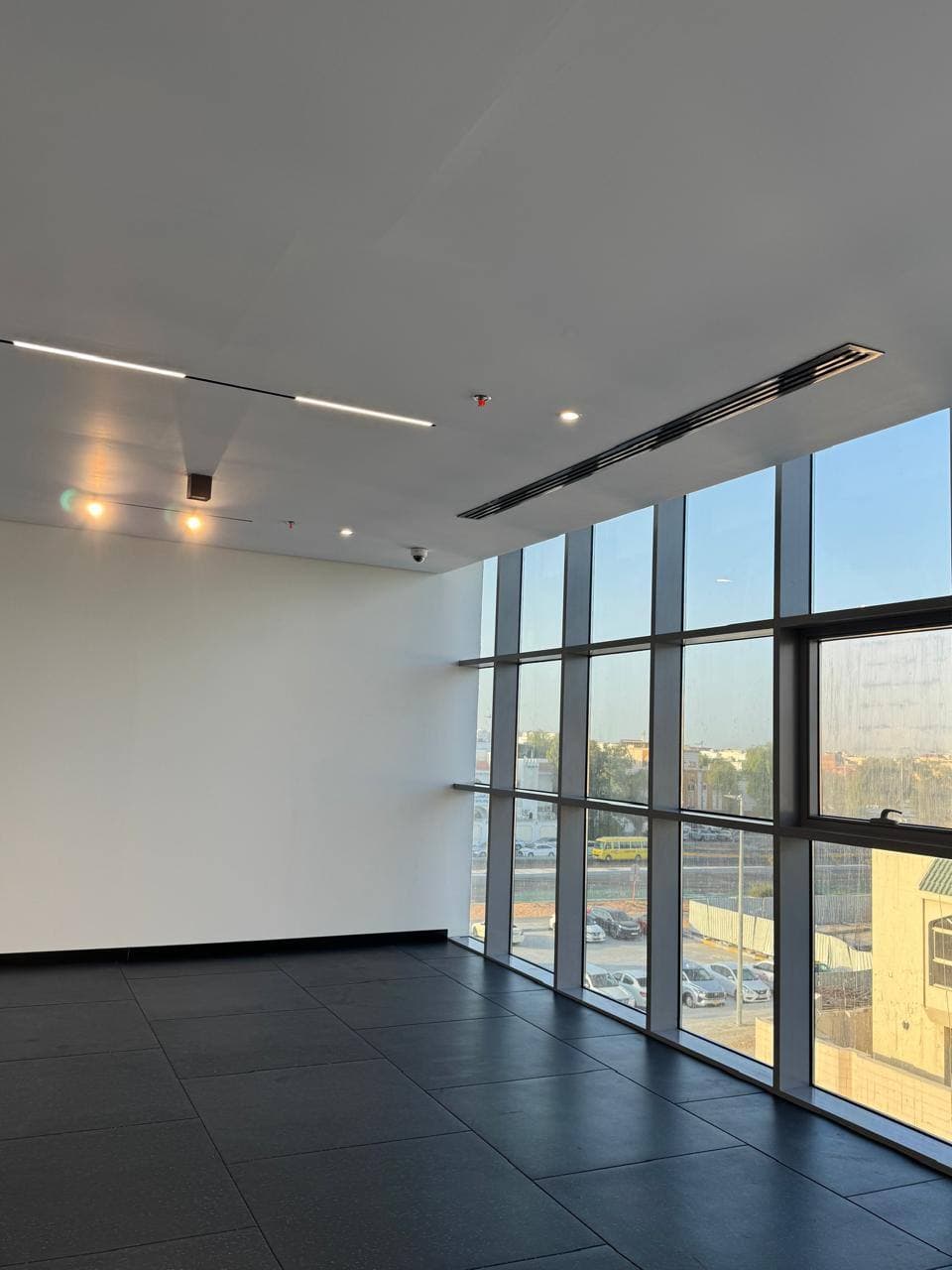

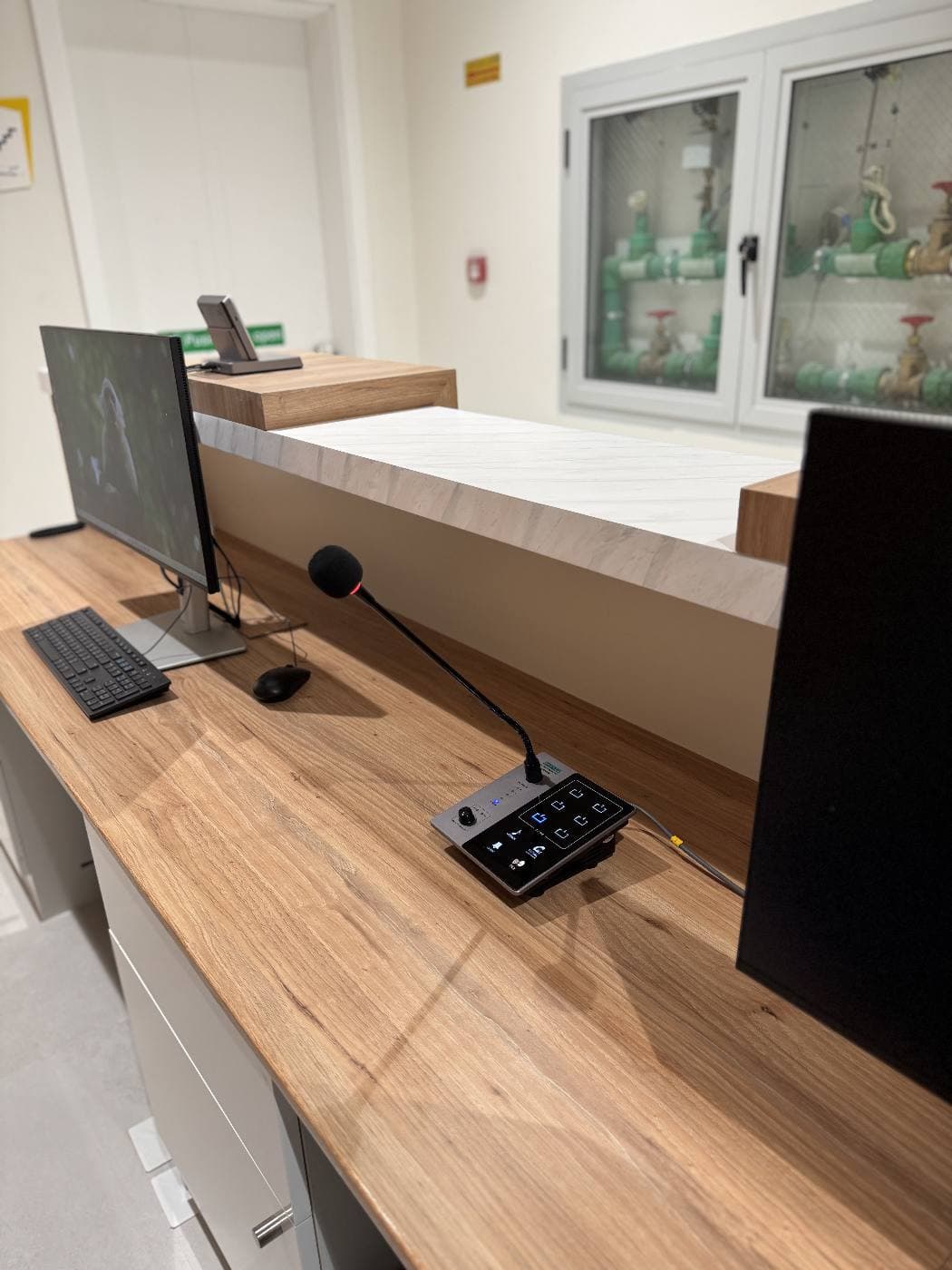

Device installation second-fix — 32+ Hikvision IP cameras (dome, turret, pendant), 14 ceiling-mounted Wi-Fi 6 access points, DSPPA zone-audio speakers, three face-ID turnstile lanes on the men's and women's entrances.

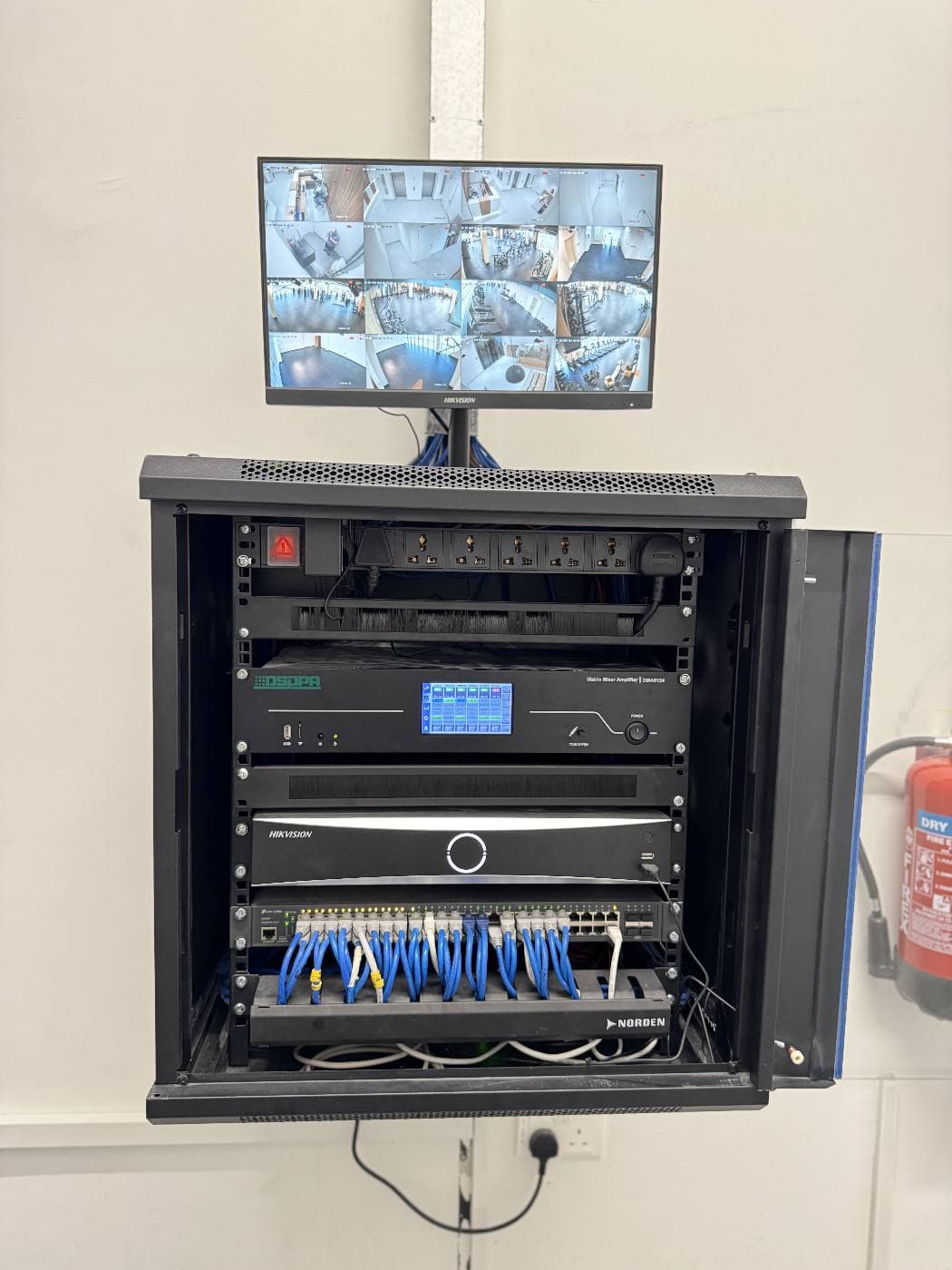

Rack & network — a full-height network cabinet with D-Link managed switching and patch panels, NVR with 30-day retention, Omada Wi-Fi controller, UPS with surge protection.

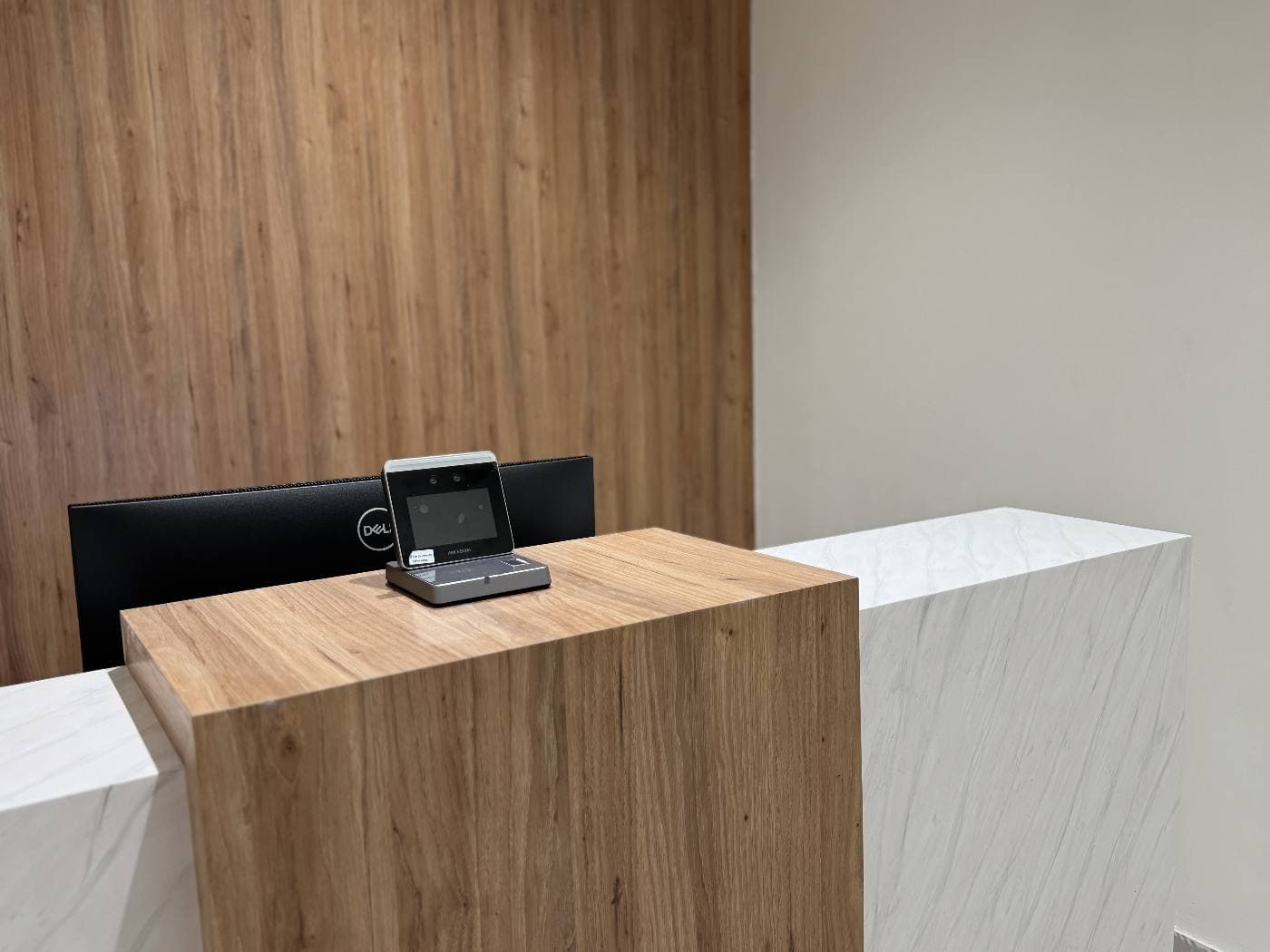

Commissioning & enrolment — Face database loaded, scenes programmed, NVR retention validated, mobile-app live view tested for the operator and owner. Documentation and training delivered the day before handover.

Every drop was labelled, every angle field-of-view tested under both training and evening lighting, every turnstile run-time-validated against the door-controller — so opening day was a launch, not a debug session.

The Results

32+ Hikvision IP cameras live across both floors on Day 1

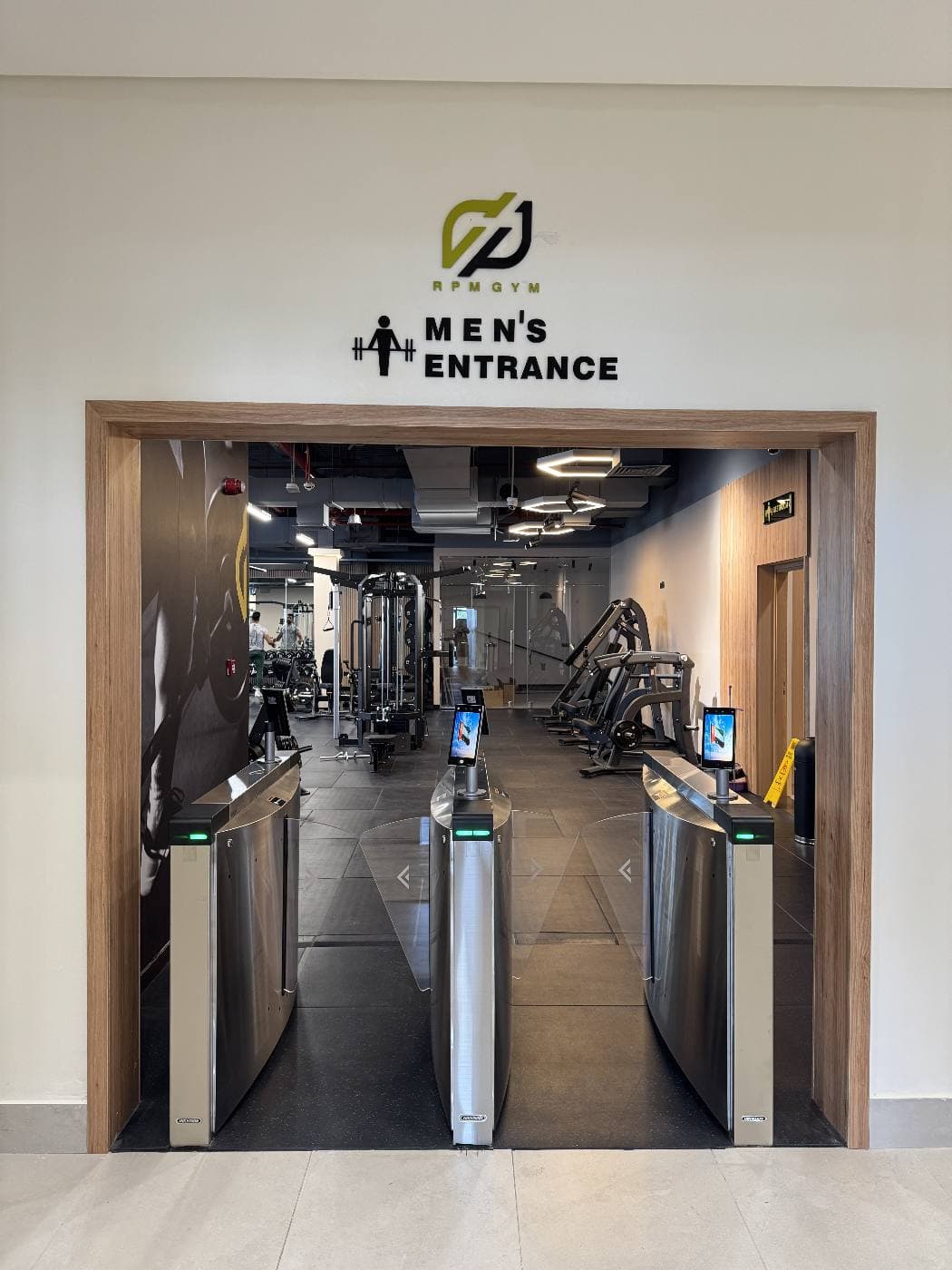

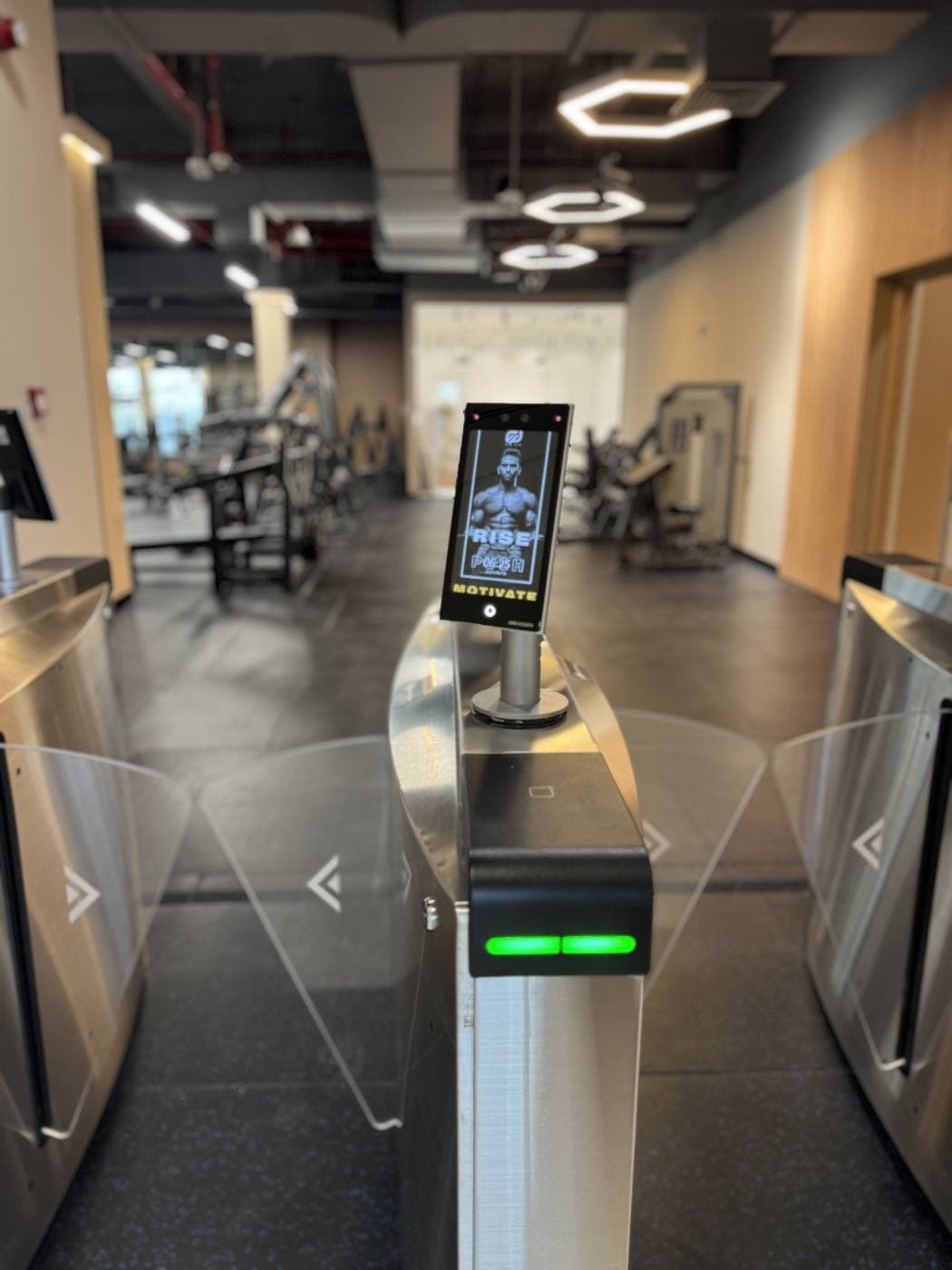

3 face-ID turnstile lanes processing members in under 600 ms per face match

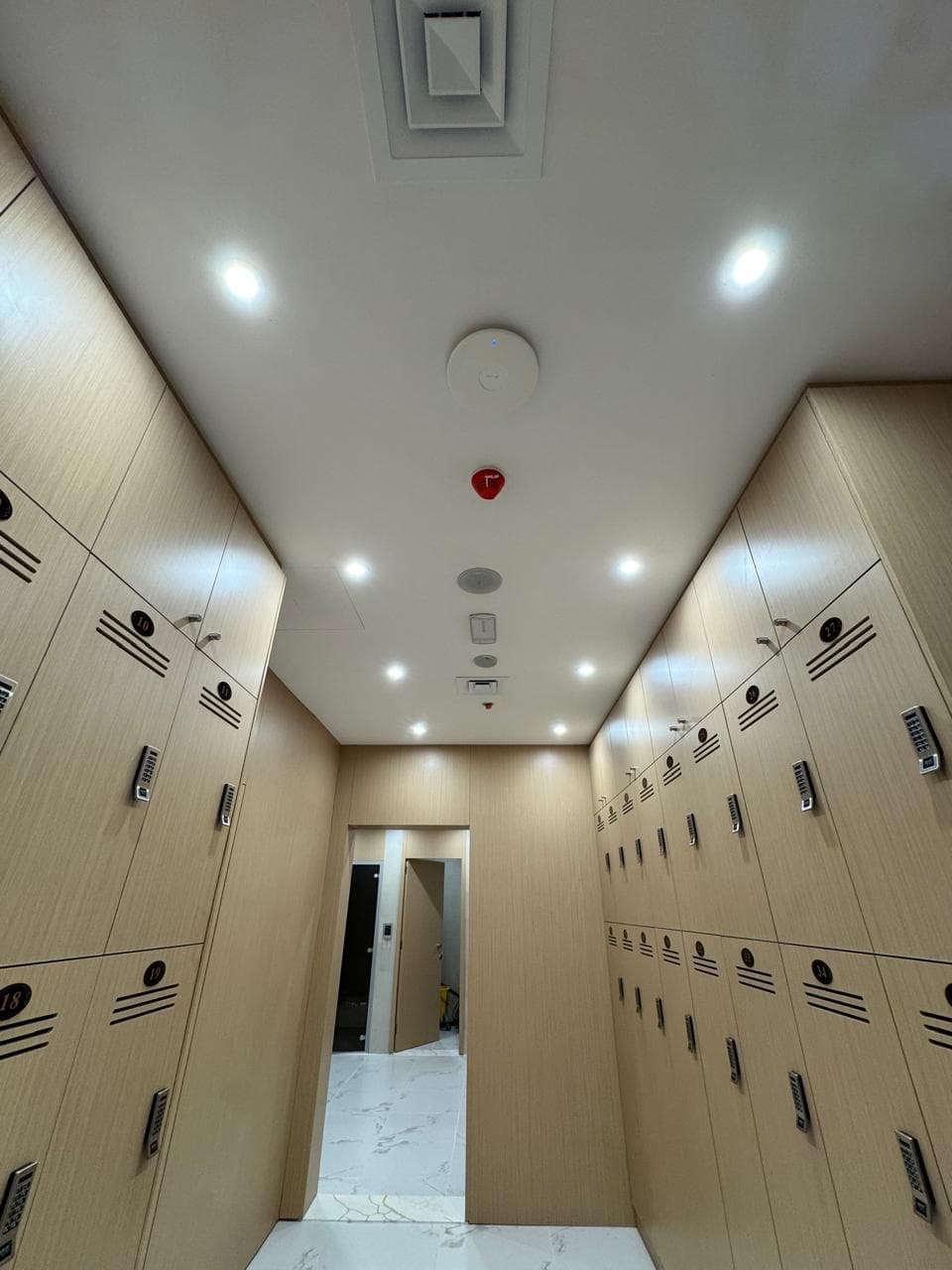

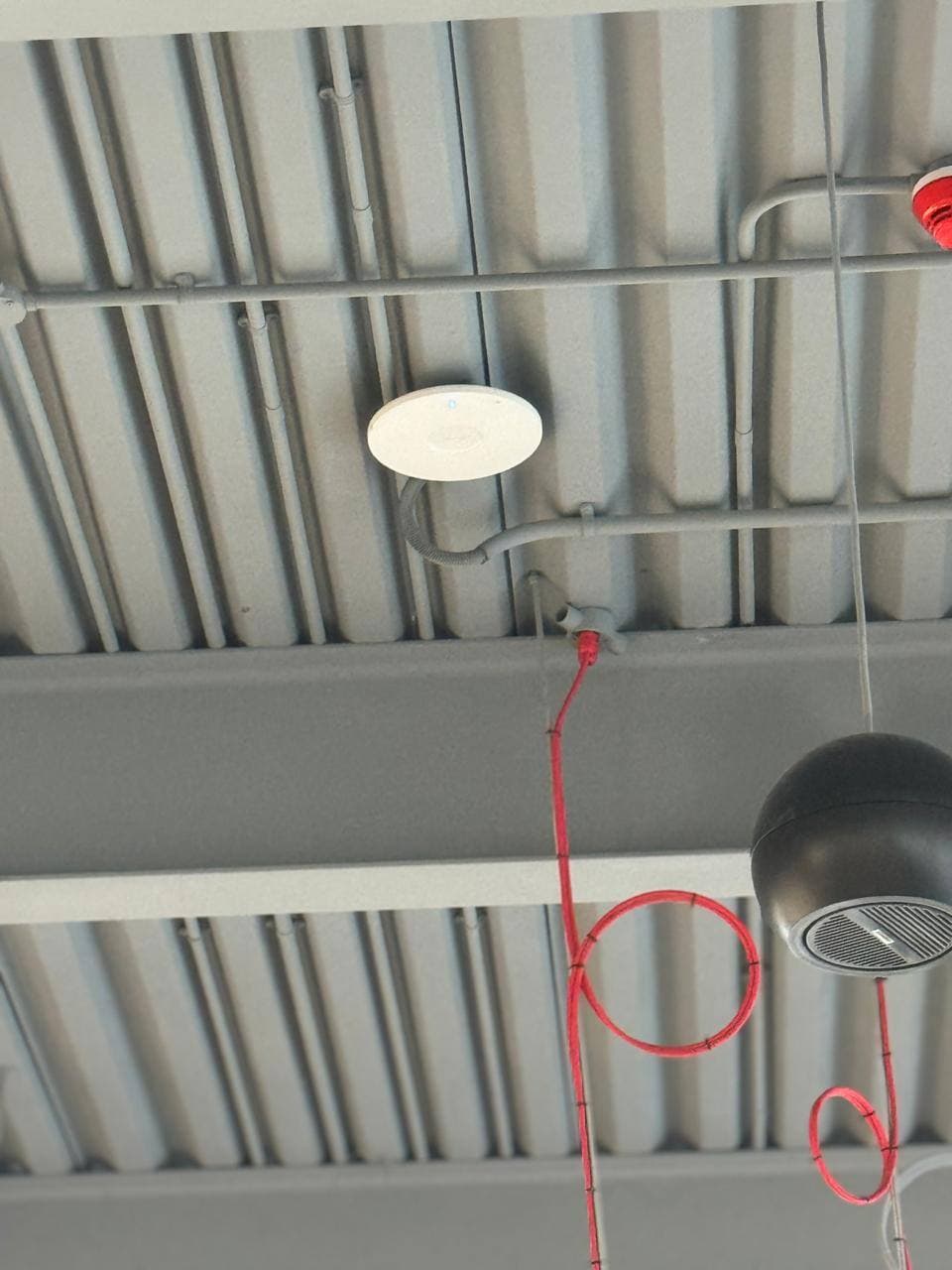

14 ceiling Wi-Fi 6 access points with seamless roaming across training floors
48 Cat 6 data drops backboned through a single cable-tray spine
Zero opening-day defects on the ELV scope — full handover signed off in the first 48 hours
30-day CCTV retention with remote live view and mobile alerts for owner and operator
